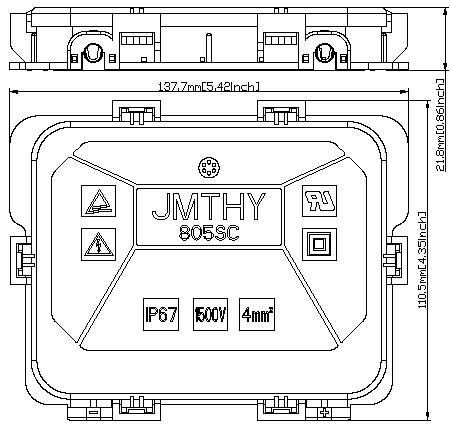

805SC

Series:

While making continuous efforts to seek talents, Jiaming aims to cultivate and bring up a talent team that pioneers the market, creates organizational advantages, leads value orientation, and has a sense of mission and responsibility to support the realization of strategic goals.

Main features:

● The shell has strong anti-aging and UV resistance;

● Meets the requirements for use in harsh outdoor environments;

● Welding belt installation is quick, and all connection methods use double-reinforced connection methods;

● Equipping different specifications of diodes will change the maximum operating current of the junction box.

● Latest certification standards: IEC62790 UL3730

Product Inquiry

Technical Parameters:

Model: 805SC(TUV)			Model: 805SC(UL)
Electrical Characteristics			Electrical Characteristics
Rated Voltage: 1500V DC			Rated Voltage: 1500V DC
Contact Resistance: ≤0.5mΩ			Contact Resistance: ≤0.5mΩ
Safety Rating: Class Ⅱ			Safety Rating: Class Ⅱ
Mechanical Characteristics			Mechanical Characteristics
Temperature Range: ﹣40℃ ～ +85℃			Temperature Range: ﹣40℃ ～ +90℃
Cable Range: 4mm2			Cable Range: 12AWG
Protection Level: IP 67, Matching			Protection Level: IP 67, Matching
Material Characteristics			Material Characteristics
Insulation Material: PPO, Black			Insulation Material: PPO, Black
Contact Material: Copper, Nickel-plated			Contact Material: Copper, Nickel-plated
Flammability Rating: UL94-V0			Flammability Rating: 5VA
Product Family:
Model	Junction Temperature Current	Certificates
805SC	12A	TUV	UL
