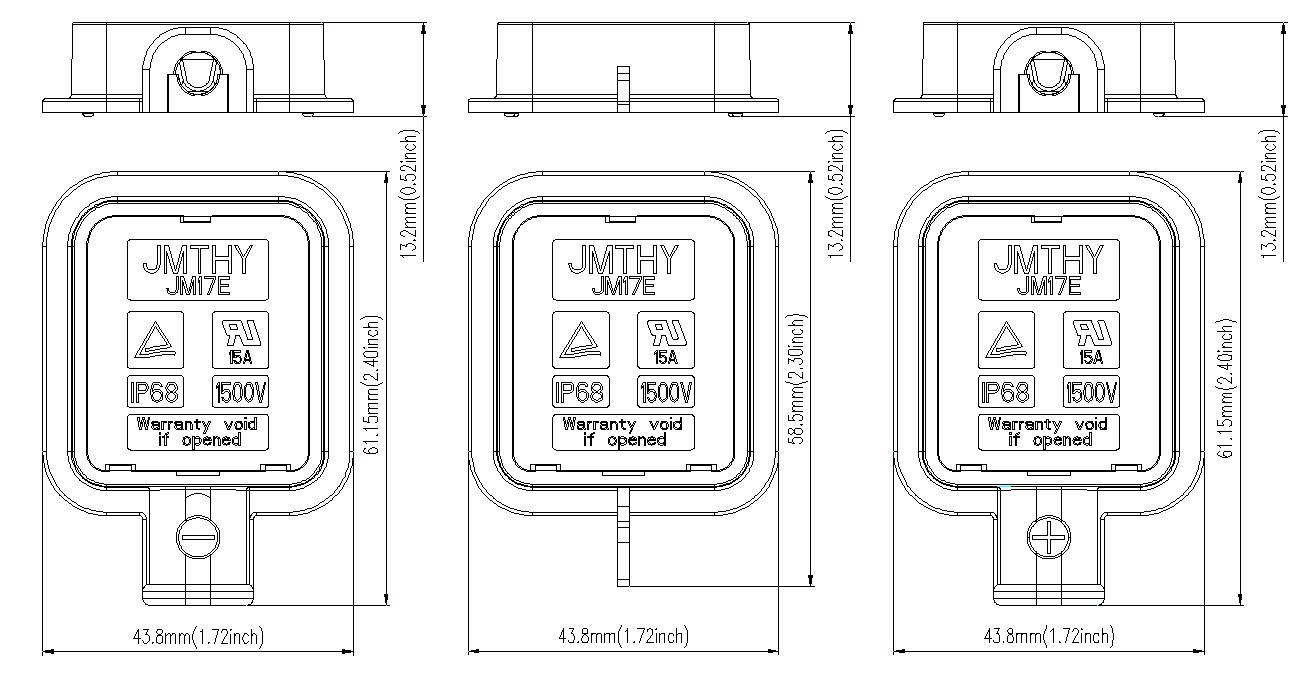

JM17E
Series:
While making continuous efforts to seek talents, Jiaming aims to cultivate and bring up a talent team that pioneers the market, creates organizational advantages, leads value orientation, and has a sense of mission and responsibility to support the realization of strategic goals.
Main features:
● The shell has strong anti-aging and UV resistance;
● Meets the requirements for use in harsh outdoor environments;
● Quick welding strip installation, all connection methods use double reinforced connection methods;
● Equipping different specifications of diodes will change the maximum operating current of the junction box.
● Latest certification standards: IEC62790:2014 UL3730
Technical Parameters:
| Model: JM17E(TUV) | |
| Electrical Characteristics | |
| Rated Voltage: 1500V DC | |
| Contact Resistance: ≤0.5mΩ | |
| Safety Class: Class Ⅱ | |
| Mechanical Characteristics | |
| Temperature Range: ﹣40℃ ～ +85℃ | |
| Cable Range: 4mm2 | |
| Protection Level: IP 68, Matching | |
| Material Characteristics | |
| Insulation Material: PPO, Black | |
| Contact Material: Copper, Nickel-plated | |
| Flammability Rating: UL94-V0 | |
| Model Number | Current at Junction Temperature |
| JM17E | 15A |
Main features:
● The shell has strong anti-aging and UV resistance;
● Meets the requirements for use in harsh outdoor environments;
● Quick welding strip installation, all connection methods use double reinforced connection methods;
● Equipping different specifications of diodes will change the maximum operating current of the junction box.
● Latest certification standards: IEC62790:2014 UL3730
