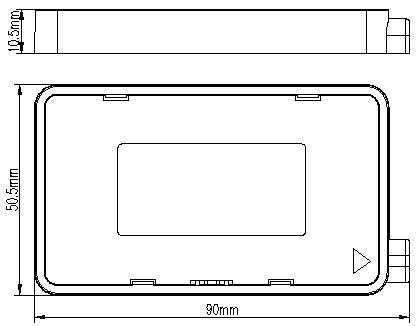

JM31
Series:
While making continuous efforts to seek talents, Jiaming aims to cultivate and bring up a talent team that pioneers the market, creates organizational advantages, leads value orientation, and has a sense of mission and responsibility to support the realization of strategic goals.
Main features:
● The shell has strong anti-aging and UV resistance;
● Meets the requirements for use in harsh outdoor environments;
● Quick welding strip installation, all connection methods use double reinforced connection methods;
● Equipping different specifications of diodes will change the maximum operating current of the junction box.
● Latest certification standards: IEC62790:2014 UL3730
Technical Parameters:
| Model: JM31 |
| Electrical Characteristics |
| Rated Voltage: 100V |
| Contact Resistance: ≤0.5mΩ |
| Mechanical Characteristics |
| Temperature Range: -40℃ ~ + 85℃ |
| Cable Range: 1.25mm2 |
| Material Characteristics |
| Insulation Material: PPE, Black |
| Contact Material: Copper, Nickel-plated |
| Flammability Rating: UL94-V0 |
| Current at Junction Temperature: 13A |
Main features:
● The shell has strong anti-aging and UV resistance;
● Meets the requirements for use in harsh outdoor environments;
● Quick welding strip installation, all connection methods use double reinforced connection methods;
● Equipping different specifications of diodes will change the maximum operating current of the junction box.
● Latest certification standards: IEC62790:2014 UL3730
While making continuous efforts to seek talents, Jiaming aims to cultivate and bring up a talent team that pioneers the market, creates organizational advantages, leads value orientation, and has a sense of mission and responsibility to support the realization of strategic goals.
