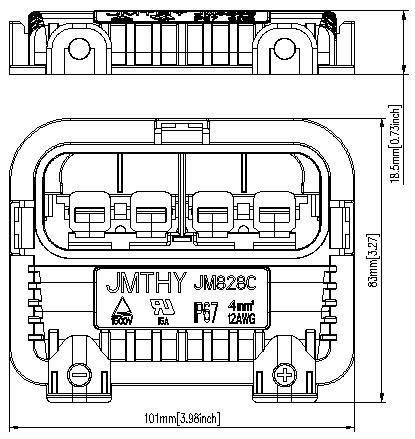

JM828C
Series:
While making continuous efforts to seek talents, Jiaming aims to cultivate and bring up a talent team that pioneers the market, creates organizational advantages, leads value orientation, and has a sense of mission and responsibility to support the realization of strategic goals.
Main features:
● Uses pre-filled glue, sealing performance passed IP67 test.
● Cable connection uses crimping, and weld band connection uses snap-on method.
● Equipping with different specifications of diodes will change the maximum operating current of the junction box.
● Latest certification standards: IEC62790:2014 UL3730
Technical Parameters:
| Model: JM828C(TUV) | Model: JM828C(UL) | ||
| Electrical Characteristics | Electrical Characteristics | ||
| Rated Voltage: 1500V DC | Rated Voltage: 1500V DC | ||
| Contact Resistance: ≤0.5mΩ | Contact Resistance: ≤0.5mΩ | ||
| Safety Class: Class Ⅱ | Safety Class: Class Ⅱ | ||
| Mechanical Characteristics | Mechanical Characteristics | ||
| Temperature Range: ﹣40℃ ～ +85℃ | Temperature Range: ﹣40℃ ～ +90℃ | ||
| Cable Range: 4mm2 | Cable Range: 12AWG | ||
| Protection Class: IP 67, Matching | Protection Class: IP 67, Matching | ||
| Material Characteristics | Material Characteristics | ||
| Insulation Material: PPO, Black | Insulation Material: PPO, Black | ||
| Contact Material: Copper, Nickel-plated | Contact Material: Copper, Nickel-plated | ||
| Flammability Rating: UL94-V0 | Flammability Rating: 5VA | ||
| Product Family: | |||
| Model | Terminal Temperature Current | Certificates | |
| JM828C | 15A | TUV | UL |
Main features:
● Uses pre-filled glue, sealing performance passed IP67 test.
● Cable connection uses crimping, and weld band connection uses snap-on method.
● Equipping with different specifications of diodes will change the maximum operating current of the junction box.
● Latest certification standards: IEC62790:2014 UL3730
