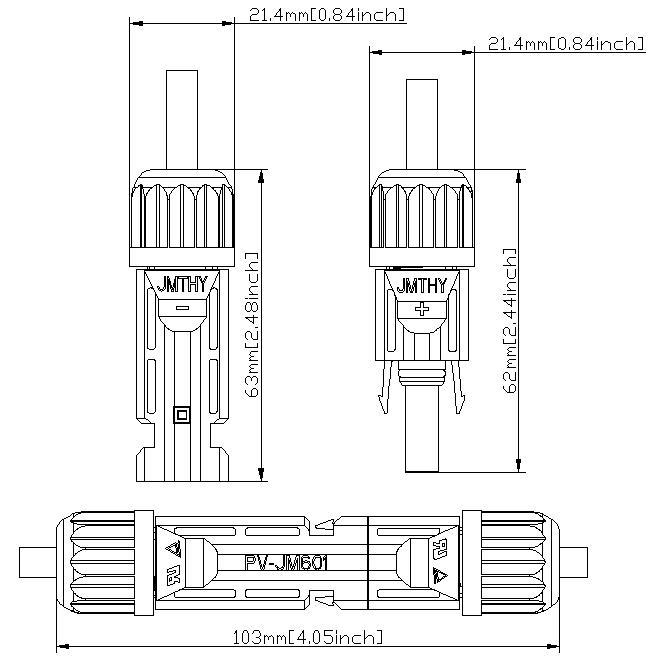

PV-JM601

Series:

While making continuous efforts to seek talents, Jiaming aims to cultivate and bring up a talent team that pioneers the market, creates organizational advantages, leads value orientation, and has a sense of mission and responsibility to support the realization of strategic goals.

Main features:

● The shell has strong anti-aging and UV resistance;

● Meets the requirements for use in harsh outdoor environments;

● The cable connection adopts riveting and clamping methods;

● The male and female head fixing has a stable self-locking mechanism, opening and closing freely;

● Latest certification standards: IEC62852:2014 UL6703

Product Inquiry

Technical Parameters:

Model: PV-JM601(TUV)	Model: PV-JM601 (UL)
Electrical Characteristics	Electrical Characteristics
Rated Current: 30A	Rated Current: 35A
Rated Voltage: 1000V DC	Rated Voltage: 1000V DC
Contact Resistance: ≤0.5mΩ	Contact Resistance: ≤0.5mΩ
Safety Class: Class Ⅱ	Safety Class: Class Ⅱ
Mechanical Characteristics	Mechanical Characteristics
Temperature Range: ﹣40℃ ～ +85℃	Temperature Range: ﹣40℃ ～ +90℃
Cable Range: 4mm2 6mm2	Cable Range: 12AWG
Protection Class: IP 68, Matching	Protection Class: IP 68, Matching
Material Characteristics	Material Characteristics
Insulation Material: PC, Black	Insulation Material: PC, Black
Contact Material: Copper, Tin-plated	Contact Material: Copper, Tin-plated
Flammability Rating: UL94-V0	Flammability Rating: 5VA
